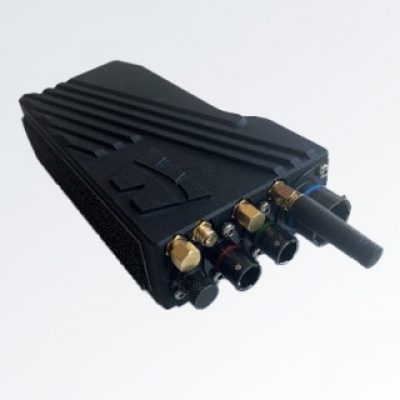

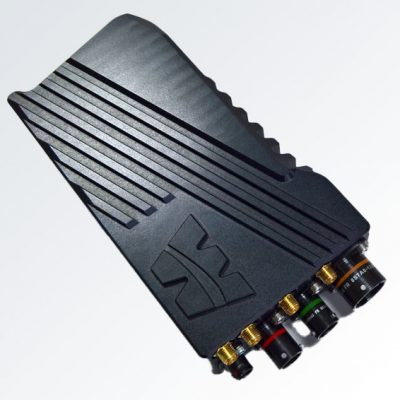

Motorcycle data logger
for measurements in the field of motorcycle development
Areas of application
- Endurance testing
- Driving tests on the race track
- Widespread testing
- Special measurement technology, e.g. vibration measurements
Special features
- Compact and closed housing
- “Rugged” Construction for direct use on the motorcycle incl. Connectors and wiring harness from racing
- Logging of CAN/CAN FD with up to 12 buses, Ethernet and special analog sensors possible
Description:
- Statistical analysis of measurement data
- All-in-one solution:
- Import of measurement data (e.g. 2D format .MES, MDF4 or others)
- Selection of time periods
- Combination of measurement data
- Statistical evaluation and analysis
- Creation of automatic reports (Excel and PowerPoint)
- Analysis and progress of measurement campaigns
- Comparison of routes/laps/measurements
Evaluations:
- Speed
- Engine speed
- Motor temperature
- Throttle position
- Inclined position
- Acceleration
- Driving modes
- Switching operations
- DTC regulations
- Brakes/ABS brake
- Outdoor temperature
- GPS_map display / altitude profile
Formats:
- 2D import (.MES)
- MDF import (*.DAT, *.MDF or *.MF4)
- more possible when ordering modules
All versions:
- WiFi
- Wireless
- GBit Ethernet
Licenses:
- Single license
- Basic function for offline analysis of measurements
- Support incl.
